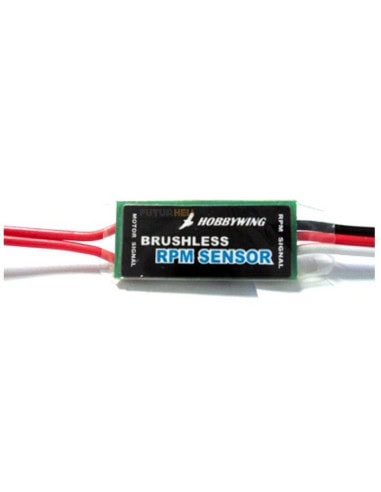

RPM Sensor Hobbywing

Référence LX9052

3x 2.5 €
4x 1.875 €

* Description :

- It detects the voltage changes at the wires of brushless motor, and then outputs the RPM signal. And one of its typical applications is to work as the RPM sensor for Ikon - Brain - V-Bar FBL system (some FBL system need special connector plug adaptor).

SPECIFICATION:

- Working voltage: 3.5V to 8.4V
- Current: 1 to 5mA
- Voltage range of the motor wires: 2 to 14S Lipo
- RPM range (for 2 poles brushless motor): 1000rpm to 300000rpm
- Working temperature: 0 to 50 Celsius degree or 32 to 122 Fahrenheit degree
- Size: 23x1x2 mm
- Weight: 6g (Input and output wires included)

TIPS AND EXTRA INFORMATION FOR THE CORRECT USE:

User manual is included in each product bag, easy and fast installation.

This RPM sensor have standard servo 3 pin connector pin. May you need a special GOV port adapter for your FBL system.
